Metal and plastic parts CNC machined for heat sinks

CNC machining is a process that removes material from a workpiece to create a desired shape or finish. It is often used to create metal and plastic parts for a variety of applications, including heat sinks. Heat sinks are devices that dissipate heat from electronic components and prevent them from overheating. CNC machining can create heat sink fins with very precise dimensions, which helps to increase the surface area for heat dissipation. In addition, CNC machining can create complex shapes that would be difficult or impossible to create using other manufacturing methods. As a result, CNC machining is an essential part of the heat sink manufacturing process.

Tips to keep in mind when machining heat sinks

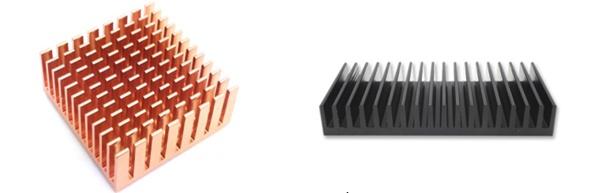

When it comes to machining metal parts for heat sinks, there are a few important factors to keep in mind. First, it’s important to choose the right type of metal. There are a variety of different types of heat sinks available, each with its own advantages and disadvantages. For example, Aluminum is a popular choice because it’s both lightweight and strong. Aluminum heat sinks are lightweight and have good thermal conductivity, but they are also susceptible to corrosion. Copper heat sinks are more durable and have better thermal conductivity than aluminum, but they are also heavier and more expensive. Ultimately, the type of heat sink that is best for a particular application depends on a number of factors, including the operating environment and the required performance. With CNC machining, the metal parts can be quickly and accurately machined to the desired specifications using CNC machine like horizontal milling machine.

Second, it’s important to consider the size and shape of the part you’re making. Heat sinks come in all shapes and sizes, so you’ll need to make sure that the part you’re making will fit the intended application. Finally, it’s important to have the right tools for the job. A good lathe will be essential for shaping the metal, while a drill press will come in handy for creating holes. With these factors in mind, you should be able to machine metal parts for heat sinks with ease.

How to machine metal parts for heat sinks

The first step in CNC machining is to create a model or design of the part that is to be created. This model can be created using computer-aided design (CAD) software. Once the model is completed, it is loaded into the CNC machine software and the machining process begins. The software is used to generate the instructions that will be used to guide the machine during the machining process. The CNC machine will follow the instructions from the CAD model to remove material from the workpiece and create the desired shape. After the machining process is complete, the part will be removed from the machine and undergo a final inspection to ensure that it meets all of the requirements for a finished heat sink.


With CNC machining, the metal parts can be quickly and accurately machined to the desired specifications. In addition, CNC machine operators have a high degree of control over the machining process, which helps to ensure that the finished parts meet all of the necessary requirements.

How to machine plastic parts for heat sinks

When machining plastic parts for heat sinks, it is important to consider the properties of the material and the desired finished product. For example, some plastics are more difficult to machine than others, and some plastics cannot withstand high temperatures. The material must be able to withstand the high temperatures generated by the machining process. In addition, the type of finish (smooth or textured) and the dimensional accuracy of the part must be taken into account. the finished product must have a good surface finish to ensure efficient heat transfer. And the dimensions of the parts must be precise to ensure a proper fit. With careful planning and execution, CNC machining can be used to produce high-quality heat sink parts from plastic materials.

In order to machine plastic parts for heat sinks with CNC, the correct type of plastic material must be chosen. The most common type of plastic used in heat sink manufacturing is polycarbonate. Polycarbonate has many desirable properties for heat sink applications, including high thermal conductivity and good dimensional stability. Other types of plastics that can be used for heat sink production include ABS and polyethylene. When choosing a plastic material for heat sink production, it is important to consider the specific application and requirements of the heat sink.

Once the correct type of plastic has been chosen, the machining process can begin. CNC machining is a versatile manufacturing process that can be used to create a variety of heat sink shapes and sizes. The most common type of heat sink produced with CNC machining is the extruded heat sink. Extruded heat sinks are made by using a CNC machine to create a long, thin tube of plastic. This tube is then cut into shorter lengths and fitted with fins to increase surface area.


Other types of heat sinks that can be produced with CNC machining include skived heat sinks and bonded fin heat sinks. Skived heat sinks are made by using a CNC machine to shave off layers of material from a block of plastic. This process creates a heat sink with very thin fins that offer high thermal conductivity. Bonded fin heat sinks are made by bonding together multiple layers of material, usually metal and plastic. This type of heat sink offers good thermal conductivity and is often used in high-powered applications.


CNC machined parts can be made with very precise tolerances, which is important for ensuring that the heat sink works properly. Heat sinks are an essential component in many electronic devices, and their importance will continue to grow as we become increasingly reliant on technology.
